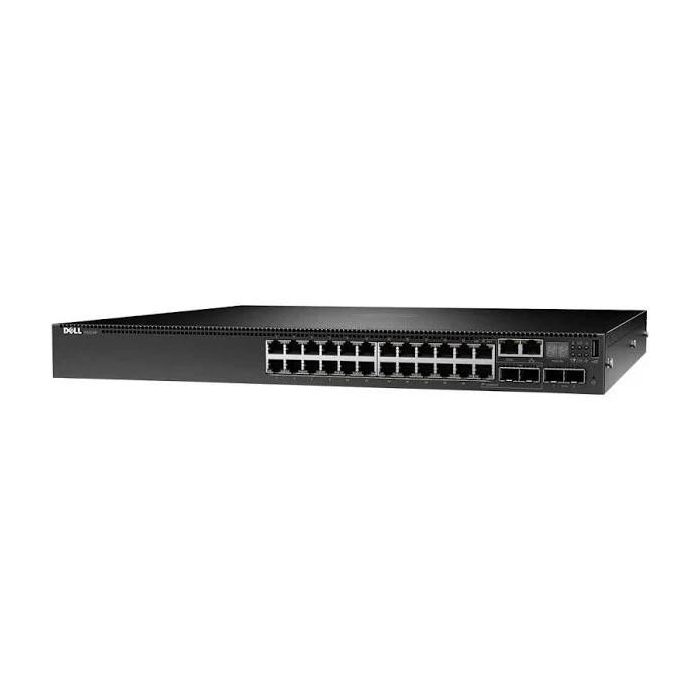

Dell Networking N3024P 24P 1Gbe L3 2P 10Gbe Poe+ Switch
Part Number:
N3024P
Need a bulk deal or have questions?
Our enterprise specialists reply within the hour.
Product Overview Device Type : Switch - 24 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 24 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X Combo Gigabit Sfp
Power Over Ethernet (poe) : Poe+
Performance : Switching Fabric Bandwidth: 212 Gbps , Forwarding Performance: 158 Mpps , Stacking Bandwidth: 84 Gbps
Capacity : Mac Addresses: 16384 , Ipv4 Routes (static): 1024 , Ipv6 Routes (static): 1024 , Ipv4 Routes (dynamic): 8160 , Ipv6 Routes (dynamic): 4096 , Maximum Member Ports Per Lag: 8 , Maximum Dynamic Ports Per Switch Stack: 144 , Lag Groups: 128 , Ospf Routes: 8160 , Rip Routes: 512 , Ecmp Next Hops Per Route: 4 , Ecmp Groups: 64 , Vlan Routing Interfaces: 128 , Vlans Supported: 4094 , Multicast Entries (ipv4): 512 , Multicast Entries (ipv6): 256 , Arp Entries: 6144 , Ndp Entries: 400 , Acl: 100 , Maximum Rules Per Acl: 1023 , Max Acl Rules System-wide: 4096 , Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1024 , Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 3072 , Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512 , Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 , Maximum Vlan Interfaces With Acls Applied: 24
Mac Address Table Size : 16k Entries
Routing Protocol : Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld
Remote Management Protocol : Snmp 2, Snmp, Rmon, Http, Ssh
Encryption Algorithm : Md5, Aes, Ssl, Tls
Authentication Method : Secure Shell (ssh), Radius, Tacacs+
Features : Layer 3 Switching, Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Stackable, Broadcast Storm Control, Multiple Spanning Tree Protocol (mstp) Support, Per-vlan Rapid Spanning Tree (pvrst), Energy Efficient Ethernet, Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Tagged Vlan, Redundant Fans, Protocol-based Vlans Support
Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az
Ram : 1 Gb
Flash Memory : 256 Mb
Expansion / Connectivity :
Interfaces : 24 X Gigabit Lan - Rj-45 , 2 X 10gbit Lan - Sfp+ , 2 X Gigabit Lan , 1 X Serial (rs-232) - Rj-45 - Management , 1 X Usb - Type A , 2 X Network Stack Device
Expansion Slots : 1 (total) / 1 (free) X Expansion Slot
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 1 (installed) / 2 (max)
Power Redundancy : Optional
Power Provided : 715 Watt
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
DELL Networking N3024P Switch 24 Ports Managed Rack-mountable.
Key Features :
Expansion / Connectivity :
Power :
Condition : Refurbished.
Availability : In Stock.
Our Warranty : 90 Days.
| Part Number: | N3024P |
|---|---|
| Capacity | 24 PORT |
| Condition | Refurbished |
| Manufacturer | DELL |
