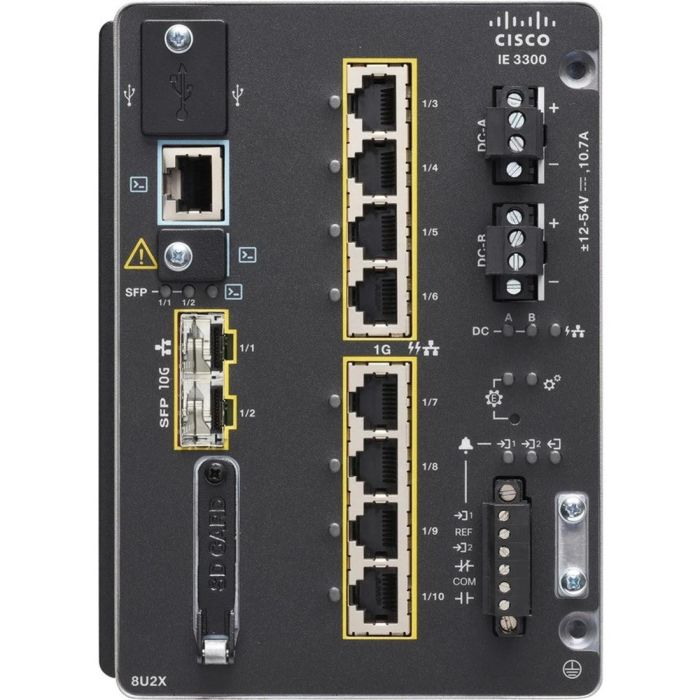

Cisco IE-3300-8U2X-A Catalyst IE3300 Rugged Series Managed Switch
Part Number:
IE-3300-8U2X-A
Need a bulk deal or have questions?
Our enterprise specialists reply within the hour.
Product Overview Device Type : Switch - 10 Ports - Managed
Enclosure Type : Din Rail Mountable
Subtype : Gigabit Ethernet
Ports : 8 X 10/100/1000 (poe++) + 2 X 1 Gigabit / 10 Gigabit Sfp+
Power Over Ethernet (poe) : Poe++
Poe Budget : 480 W
Capacity : Queues: 8 ¦ Igmp Multicast Groups: 1000 ¦ Vlans Supported: 256 ¦ Indirect Ipv4 Routes: 2000 ¦ Indirect Ipv6 Routes: 512 ¦ Stp Instances: 128 ¦ Access Control Lists (pacl/vacl/racl): 1500
Mac Address Table Size : 8000 Entries
Jumbo Frame Support : 8996 Bytes
Routing Protocol : Ospf, Bgp-4, Rip-1, Rip-2, Eigrp, Igmpv2, Hsrp, Igmp, Vrrp, Pim-sm, Static Ip Routing, Pim-dm, Igmpv3, Eigrp For Ipv6, Msdp, Policy-based Routing (pbr), Is-isv6, Bgp For Ipv6, Vrrp6, Mstp, Stp, Is-isv4
Remote Management Protocol : Snmp 1, Snmp 2, Rmon, Telnet, Snmp 3, Http, Https, Tftp, Ssh, Scp, Netconf, Restconf, Ntp, Icmp, Dhcp, Ipv4, Ipv6, Yang, Tacacs+, Radius
Authentication Method : Secure Shell (ssh), Radius, Tacacs+
features : Modular Design, Bootp Support, Arp Support, Igmp Snooping, Syslog Support, Diffserv Support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (rstp) Support, Port Aggregation Protocol (pagp) Support, Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Virtual Route Forwarding-lite (vrf-lite), Dynamic Arp Inspection (dai), Uni-directional Link Detection (udld), Fanless, Lacp Support, Lldp Support, Dhcp Relay, Port Security, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Neighbor Discovery Protocol (ndp), Static Routing, Flexible Netflow (fnf), 802.1x Authentication, Precision Time Protocol (ptp), Macsec Support, Profinet, Igmp Filtering, Ip Source Guard, Resilient Ethernet Protocol (rep), Smartport Technology, Igmp Querier, Voice Vlan, Ra Guard, Guest Vlan, User Datagram Protocol (udp), Switched Port Analyzer (span), Protocol Independent Multicast (pim), Vlan Trunking Protocol (vtp) V.3, First Hop Security (fhs), Bpdu Guard, Q-in-q Tunneling, Vlan Trunking Protocol (vtp) V.2, Media Redundancy Protocol (mrp), Etherchannel Support, CISCO Discovery Protocol (cdp), Rapid Pvst+ (rpvst+), Dns Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3bt
Ram : 4 Gb
Flash Memory : 1.5 Gb
Built-in Devices : Sd Card Reader
Expansion / Connectivity :
Interfaces :
8 X 10/100/1000 Base-t Rj-45 Poe++
2 X 1/10gbase-x Sfp+
1 X Console (mini-usb) Type B
2 X Alarm Input
1 X Alarm Output
1 X Serial (rs-232) Rj-45
Power :
Max Supported Qty : 2
Power Redundancy : Optional
Condition : Refurbished
Availability : In Stock.
Our Warranty : 90 Days.
CISCO IE-3300-8U2X-A Catalyst Ie3300 Rugged Series - Switch Advantage - Managed - 8 X 10/100/1000 (poe++) + 2 X 1 Gigabit / 10 Gigabit Sfp+ - Din Rail Mountable - Poe++ (480 W) :
Key Features :
features : Modular Design, Bootp Support, Arp Support, Igmp Snooping, Syslog Support, Diffserv Support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (rstp) Support, Port Aggregation Protocol (pagp) Support, Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Virtual Route Forwarding-lite (vrf-lite), Dynamic Arp Inspection (dai), Uni-directional Link Detection (udld), Fanless, Lacp Support, Lldp Support, Dhcp Relay, Port Security, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Neighbor Discovery Protocol (ndp), Static Routing, Flexible Netflow (fnf), 802.1x Authentication, Precision Time Protocol (ptp), Macsec Support, Profinet, Igmp Filtering, Ip Source Guard, Resilient Ethernet Protocol (rep), Smartport Technology, Igmp Querier, Voice Vlan, Ra Guard, Guest Vlan, User Datagram Protocol (udp), Switched Port Analyzer (span), Protocol Independent Multicast (pim), Vlan Trunking Protocol (vtp) V.3, First Hop Security (fhs), Bpdu Guard, Q-in-q Tunneling, Vlan Trunking Protocol (vtp) V.2, Media Redundancy Protocol (mrp), Etherchannel Support, CISCO Discovery Protocol (cdp), Rapid Pvst+ (rpvst+), Dns Support
Expansion / Connectivity :
Interfaces :
Power :
Condition : Refurbished
Availability : In Stock.
Our Warranty : 90 Days.
| Part Number: | IE-3300-8U2X-A |
|---|---|
| Capacity | 10 PORT |
| Condition | Refurbished |
| Manufacturer | CISCO |
