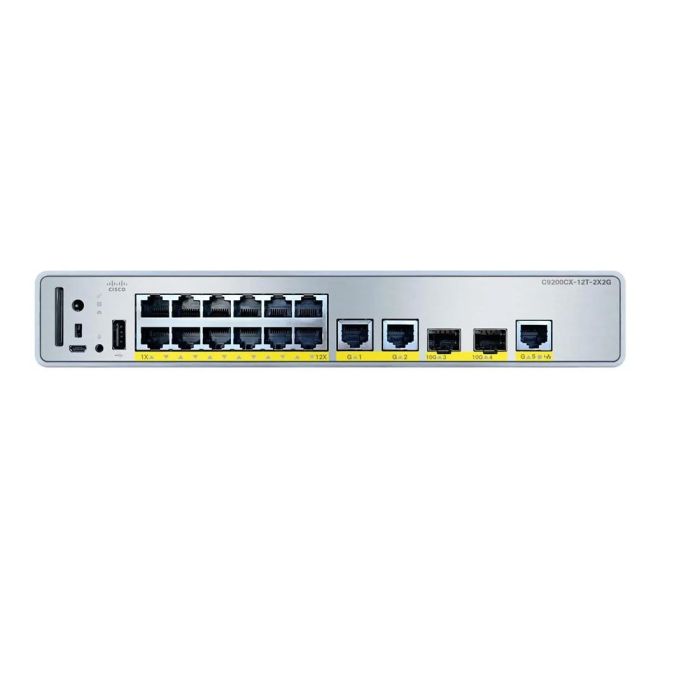

Cisco C9200CX-12T-2X2G-A Catalyst 9200CX 12-Port 1G, 2x10G and 3x1G Network Advance Switch
Part Number:
C9200CX-12T-2X2G-A
Need a bulk deal or have questions?
Our enterprise specialists reply within the hour.
Product Overview Device Type : Switch - 12 Ports - L3 - Managed
Enclosure Type : Rack-mountable 1u
Subtype : Gigabit Ethernet
Ports : 12 X 1000base-t + 3 X 1000base-t + 2 X 1 Gigabit / 10 Gigabit Sfp+ (uplink)
Power Over Ethernet (poe) : Upoe+
Performance : Switching Capacity: 120 Gbps , Forwarding Rate: 95.23 Mpps , Packet Buffer Size: 6 Mb
Capacity : Virtual Networks: 16 , Ipv4 Routes: 14000 , Direct Ipv4 Routes: 10000 , Indirect Ipv4 Routes: 4000 , Ipv4 Routing Entries: 4000 , Ipv6 Routing Entries: 2000 , Multicast Scale: 1000 , Qos Scale Entries: 1000 , Acl Scale Entries: 1600 , Flexible Netflow Entries: 16000 , Vlan Ids: 4096 , Pvst Instances: 128 , Stp Virtual Ports For Pvst: 13000 , Stp Virtual Ports For Mst: 13000
Mac Address Table Size : 32000 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Eigrp, Vrrp, Pim-sm, Eigrp For Ipv6, Ospfv3, Pim-ssm, Policy-based Routing (pbr), Ripng, Mstp
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf, Yang
Encryption Algorithm : 256-bit Aes
Features : Access Control List (acl) Support, Quality Of Service (qos), Rapid Per-vlan Spanning Tree Plus (pvrst+), Fanless, Shaped Round Robin (srr), Pxe Support, Remote Switch Port Analyzer (rspan), Energy Efficient Ethernet, Management Information Base (mib), Class Of Service (cos), Flexible Netflow (fnf), 802.1x Authentication, Diffserv Code Point (dscp) Support, Macsec Support, Control Plane Protection (copp), Zero-touch Provisioning (ztp), Switched Port Analyzer (span), Embedded Event Manager (eem), Protocol Independent Multicast (pim), First Hop Security (fhs), Pvlan Support, Committed Information Rate (cir), CISCO Unified Access Data Plane (uadp) 2.0, Trustworthy Systems
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ae, Ieee 802.3at, Ieee 802.3bt
Ram : 4 Gb
Flash Memory : 8 Gb
Built-in Devices : Rfid Tag
Status Indicators : Power
Expansion / Connectivity :
Interfaces :
12 X 1000base-t Rj-45
2 X 1000base-t Rj-45
2 X 1/10gbase-x Sfp+ Uplink
1 X 1000base-t Rj-45 Upoe+ - 60 W
1 X Console (micro-usb)
1 X Usb 2.0
Expansion Slots :
1 (total) / 1 (free) X Sd Memory Card
Power :
Power Device : External Power Adapter (not Included)
Power Provided : 80 Watt
Voltage Required : Ac 100-240 V
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
CISCO C9200CX-12T-2X2G-A Catalyst 9200cx - Network Advantage - Switch - Compact - L3 - Managed - 12 X 1000base-t + 3 X 1000base-t + 2 X 1 Gigabit / 10 Gigabit Sfp+ (uplink) - Rack-mountable :
Key Features :
Expansion / Connectivity :
Interfaces :
Expansion Slots :
Power :
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
| Part Number: | C9200CX-12T-2X2G-A |
|---|---|
| Capacity | 16 PORT |
| Condition | New Factory Sealed |
| Manufacturer | CISCO |
