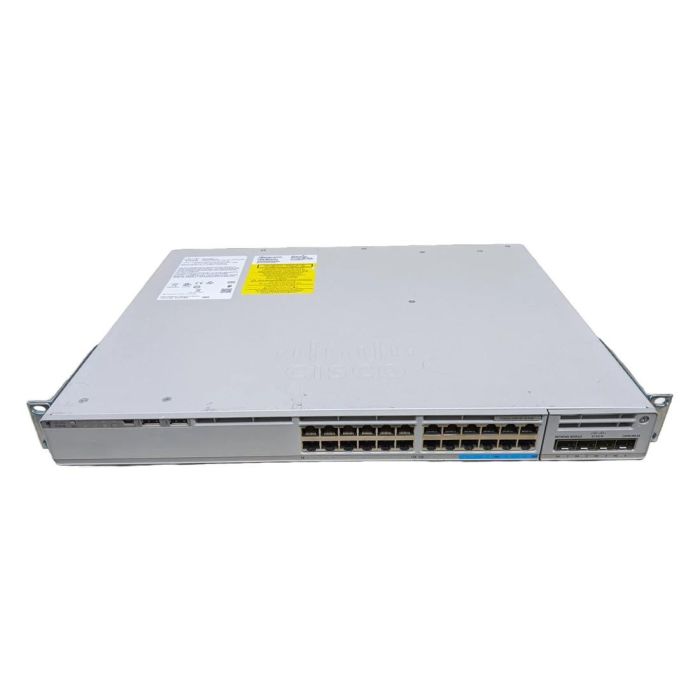

Cisco C9200-24PXG-E Catalyst 9200 24-port 8xmGig PoE+ Network Essentials Switch F/S
Part Number:
C9200-24PXG-E
Need a bulk deal or have questions?
Our enterprise specialists reply within the hour.
Product Overview Device Type : Switch - 24 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable
Subtype : Gigabit Ethernet
Ports : 8 X 100/1000/2.5g/5g/10gbase-t + 16 X 10/100/1000 (poe+)
Power Over Ethernet (poe) : Poe+
Poe Budget : 370 W
Performance : Stacking Bandwidth: 80 Gbps ¦ Switching Capacity: 272 Gbps ¦ Switching Capacity With Stacking: 352 Gbps ¦ Forwarding Rate: 214.28 Mpps
Capacity : Virtual Networks: 1 ¦ Ipv4 Routes: 11000 ¦ Ipv4 Routing Table Entries: 3000 ¦ Ipv6 Routing Table Entries: 1500 ¦ Multicast Scale: 1000 ¦ Acl Scale Entries: 1500 ¦ Fnf Entries: 16000 ¦ Vlans Supported: 1024 ¦ Switched Virtual Interfaces (svis): 512 ¦ Qos Hardware Queues Per Port: 8 ¦ Packet Buffer Size: 6 Mb
Mac Address Table Size : 16000 Entries
Jumbo Frame Support : 9198 Bytes
Routing Protocol : Ospf, Rip, Is-is, Rip-1, Rip-2, Eigrp, Hsrp, Vrrp, Pim-sm, Eigrp For Ipv6, Ospfv3, Pim-ssm, Msdp, Policy-based Routing (pbr), Ripng, Mstp
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf, Ipv4, Ipv6, Yang
Encryption Algorithm : 128-bit Aes
Features : Arp Support, Spanning Tree Protocol (stp) Support, Quality Of Service (qos), Rapid Per-vlan Spanning Tree Plus (pvrst+), Shaped Round Robin (srr), Pxe Support, Remote Switch Port Analyzer (rspan), Energy Efficient Ethernet, Management Information Base (mib), Virtual Routing And Forwarding (vrf), Class Of Service (cos), Flexible Netflow (fnf), Diffserv Code Point (dscp) Support, Macsec Support, Control Plane Protection (copp), Virtual Extensible Lan (vxlan), Location Id Separation Protocol (lisp), Switched Port Analyzer (span), Security Group Tag (sgt) Caching, Embedded Event Manager (eem), Protocol Independent Multicast (pim), First Hop Security (fhs), Pvlan Support, Committed Information Rate (cir), CISCO Stackwise-80 Technology
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3bz
Ram : 2 Gb
Flash Memory : 4 Gb
Expansion / Connectivity :
Interfaces :
8 X 100/1000/2.5g/5g/10gbase-t Rj-45
16 X 1000base-t Rj-45 Poe+
1 X Network Stack Device
1 X Management (lan) Rj-45
1 X Console Rj-45
Power :
Power Device : Internal Power Supply - Hot-plug
Max Supported Qty : 2
Power Redundancy : Optional
Voltage Required : Ac 100-240 V (50 - 60 Hz)
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
CISCO C9200-24PXG-E Catalyst 9200 - Network Essentials - Switch - 24 Ports - 8xmgig, 16x1g, Poe+ - Managed - Rack-mountable :
Key Features :
Expansion / Connectivity :
Interfaces :
Power :
Condition : Refurbished
Availability : In Stock
Our Warranty : 90 Days
| Part Number: | C9200-24PXG-E |
|---|---|
| Capacity | 24 PORT |
| Condition | Refurbished |
| Manufacturer | CISCO |
