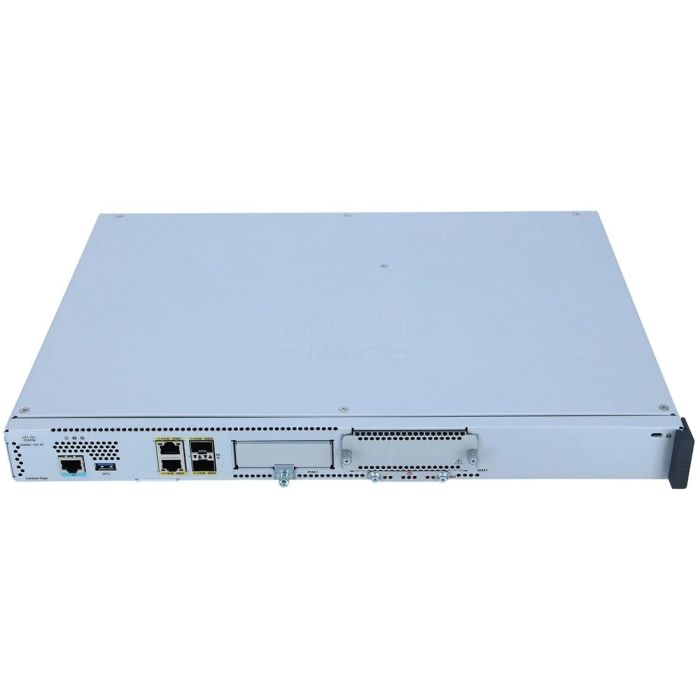

Cisco Catalyst C8200L-1N-4T Router
Part Number:
C8200L-1N-4T
Need a bulk deal or have questions?
Our enterprise specialists reply within the hour.
Product Overview Device Type : Router
Enclosure Type : Rack-mountable - 1u
Connectivity Technology : Wired
Data Link Protocol : Gigabit Ethernet
Performance : Sd-wan Ipsec Throughput (1400bytes, Clear Text): 500 Mbps Sd-wan Ipsec Throughput (imix, Clear Text): 400 Mbps Ipv4 Forwarding Throughput (1400-byte Packet Size): 3.8 Gbps Ipsec Throughput (1400bytes, Clear Text): 500 Mbps
Capacity : Sd-wan Overlay Tunnels Scale: 1500 Ipsec Svti Tunnels: 1500 Access Control Entries (aces) Per System (ipv4): 72000 Ipv4 Routes: 800000 Ipv6 Routes: 800000 Queues: 16000 Nat Sessions: 600000 Firewall Sessions: 512000 Virtual Routing And Forwarding (vrf) Entries: 2000 Acls Per System: 4000
Network / Transport Protocol : Rsvp, Ntp, Ipsec, Pppoe, Dhcp, Dns, L2tpv3, Rtcp
Routing Protocol : Ospf, Rip, Is-is, Rip-2, Bgp, Eigrp, Hsrp, Dvmrp, Vrrp, Igmpv3, Gre, Ospfv3, Policy-based Routing (pbr), Mpls, Bidirectional Forwarding Detection (bfd)
Remote Management Protocol : Snmp, Scp, Omp
Encryption Algorithm : Des, Triple Des, Md5, Ike, Tls, Sha-1, Pki, 128-bit Aes, Sha-2, 1024-bit Rsa, 2048-bit Rsa, 256-bit Sha, 256-bit Aes-gcm, 256-bit Aes-cbc, 512-bit Sha, Esp, 748-bit Rsa, 384-bit Sha, Ecdsa 256-bit, Ecdsa 384-bit, Hmac
Authentication Method : Secure Shell (ssh), Radius
Features : Nat Support, Pat Support, Syslog Support, Url Filtering, Class-based Weighted Fair Queuing (cbwfq), Weighted Random Early Detection (wred), Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Bidirectional Forwarding Detection (bfd), Dhcp Client, Forward Error Correction (fec), Class Of Service (cos), Call Admission Control (cac), Flexible Netflow (fnf), Application Visibility And Control (avc), Source-specific Multicast (ssm), Authentication, Authorization And Accounting (aaa), Hierarchical Quality Of Service (hqos), Encapsulated Remote Span (erspan), Embedded Event Manager (eem), Protocol Independent Multicast (pim), Ethernet Virtual Connections (evc), CISCO Ios Ip Service-level Agreements (ipsla), Network-based Application Recognition (nbar), Datagram Transport Layer Security (dtls), Point-to-point Protocol (ppp), High-level Data Link Control (hdlc), Multilink Point-to-point Protocol (mlppp), Multilink Frame Relay (mlfr), Application Aware Routing (aar), Interactive Voice Response (ivr), Service Advertisement Framework (saf), Secure Unique Device Identification (sudi)
Compliant Standards : Ieee 802.1q, Ieee 802.3ah, Ieee 802.1ag, En 61000-3-2, Iec 61000-3-2, En55024, En 61000-6-1, As/nzs 60950-1, Ices-003 Class A, Ul 60950-1, Iec 60950-1, En 60950-1, Fda, Fcc Cfr47 Part 15 A, Cns 13438 Class A, En 300 386, Kn35, Iec/en 61000-4-3, Iec/en 61000-4-4, Iec/en 61000-4-5, Iec/en 61000-4-6, Iec/en 61000-4-8, As/nzs Cispr 32 Class A, Kn32 Class A, Iec/en 61000-4-11, Iec/en 61000-4-2, En 55032, Cispr 32 Class A, Vcci-cispr 32:2016 Class A, En 55035, Iec/en 61000-3-3, Iec/en 60825, Sig, Can/csa C22.2 No. 60950-1
Processor : Intel
Ram : 4 Gb (installed) / 32 Gb (max)
Flash Memory : 8 Gb
Built-in Devices : 16 Gb Ssd
Ip Telephony :
Voip Protocols : Srtp
Expansion / Connectivity :
Interfaces :
Wan: 2 X Ethernet 1000 - Sfp (mini-gbic)
Wan: 2 X Ethernet 1000 - Rj-45
Expansion Slots :
1 (total) / 1 (free) X Nim
1 (total) / 1 (free) X Pluggable Interface Module (pim)
Installed Modules Qty (max)
0 (installed) / 2 (max)
Power :
Power Device : Internal Power Supply - 100 Watt
Installed Qty : 1 (max)
Voltage Required : Ac 120/230 V (50/60 Hz)
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
CISCO C8200L-1N-4T Router - 4 Ports - Gigabit Ethernet - 1u - Rack-mountable :
Key Features :
Ip Telephony :
Expansion / Connectivity :
Interfaces :
Expansion Slots :
Installed Modules Qty (max)
Power :
Condition : New Factory Sealed
Availability : In Stock
Our Warranty : 90 Days
| Part Number: | C8200L-1N-4T |
|---|---|
| Capacity | 4 PORT |
| Condition | New Factory Sealed |
| Manufacturer | CISCO |
