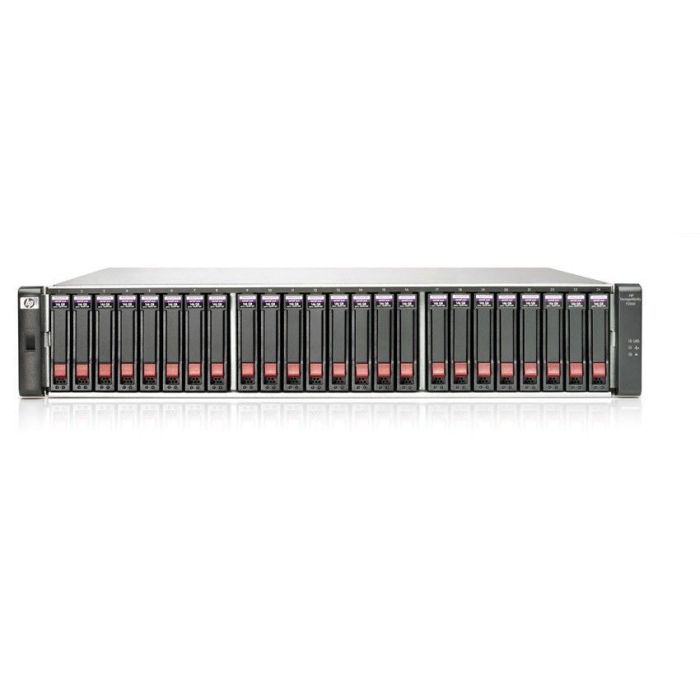

HP AP846B Sas-Sata Storageworks Modular Smart Array Enclosures

HP AP846B Modular Smart Array P2000 G3 Fc Dual Controller Sff Modular Smart Array System Hard Drive Array - 24-bay - 0

General:

Device Type: Hard Drive Array
Enclosure Type: Rack-mountable - 2u

Width: 17.6 In
Depth: 20.3 In
Height: 3.5 In

Chassis:

Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 24
Supported Drives: Serial Ata-300 / Sas 2

Storage:

External Interface: 8gb Fibre Channel
Maximum Luns: 512

Storage Controller:

Type: 2 X Raid (8gb Fibre Channel)
Controller Interface Type: Serial Ata-300 / Sas 2.0
Data Transfer Rate: 600 Mbps
Cache / Buffer Size (max): 2 Gb
Raid Level: Raid 0, Raid 1, Raid 3, Raid 5, Raid 6, Raid 10, Raid 50

Hard Drive:

Type: Hot-swap - Plug-in Module
Capacity: 0

Expansion / Connectivity:

Expansion Bays: 24 (total) / 24 (free) X Hot-swap - 2.5 Sff
Interfaces: 2 X Serial Attached Scsi 2 - 26 Pin 4x Shielded Mini Multilane Sas (sff-8088) 2 X Management 2 X Management - Rj-45 4 X 8gb Fibre Channel

System Requirements:

Os Required: HP-UX, Red Hat Linux, Suse Linux Enterprise Server, HP Openvms, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Oracle Solaris 10, Microsoft Windows Server 2003 (32/64-bits) Sp2, Microsoft Windows Server 2003 (32/64-bits) Sp1

Power:

Power Device: 2 X Power Supply - Hot-plug - Plug-in Module
Max Supported: Qty 2
Installed Quantity: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: Ac 120/230 V (50/60 Hz)

Condition: Refurbished.
Availability: In Stock.
Our Warranty: 90 Days.
