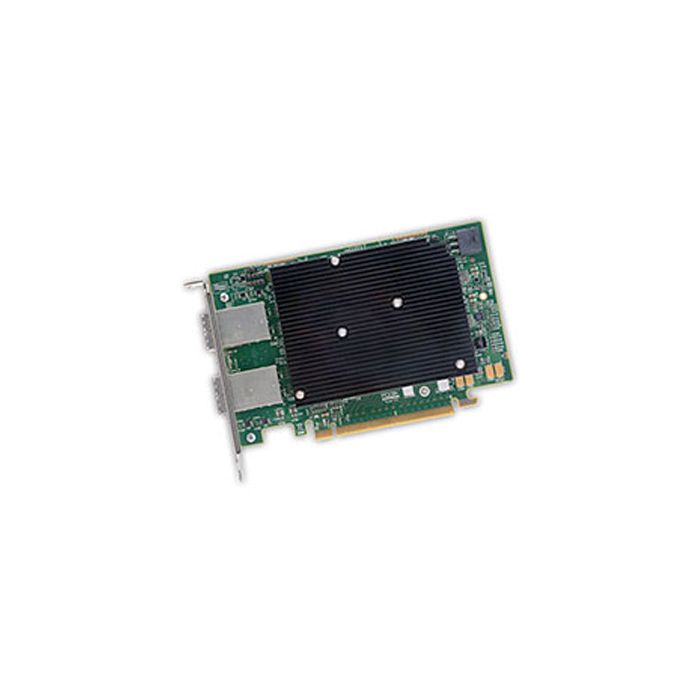

Broadcom 9302-16E 16-Port 12GB/S SAS+SATA to PCI Express Host Bus Adapter

BROADCOM 9302-16E 16-port 12gb/s Sas+sata To Pci Express Host Bus Adapter.

Main Specifications:

Io Controller: Two Sas 3008/ Fusion Mpt 2.5

Storage Connectivity Data Transfer Rates: 16 Ports, 12gb/s Sas 3.0 Compliant

Sas Bandwidth: Half Duplex (x8 Wide Bus)9600 Mb/s

Port Configurations:16 Ea, X1 Ports (individual Drives)/4 Ea, X4 Wide Ports/2ea , X8 Wide Ports.

Host Bus: X16 Lane, Pci Express 3.0 Compliant

Pci Data Burst Transfer Rates: Half Duplex X16, Pcie, 16000 Mb/s.

Physical Dimensions: 4.4 X 6.6

Connectors: Four (x4) Mini-sas Hd External Connector (sff8644)

Cable Support: Passive Copper, Active Copper

Operating Voltage: +12v +/-8%, 3.3v +/-9%

Condition: New Factory Sealed.
Availability: In Stock.
Our Warranty: 90 Days.
