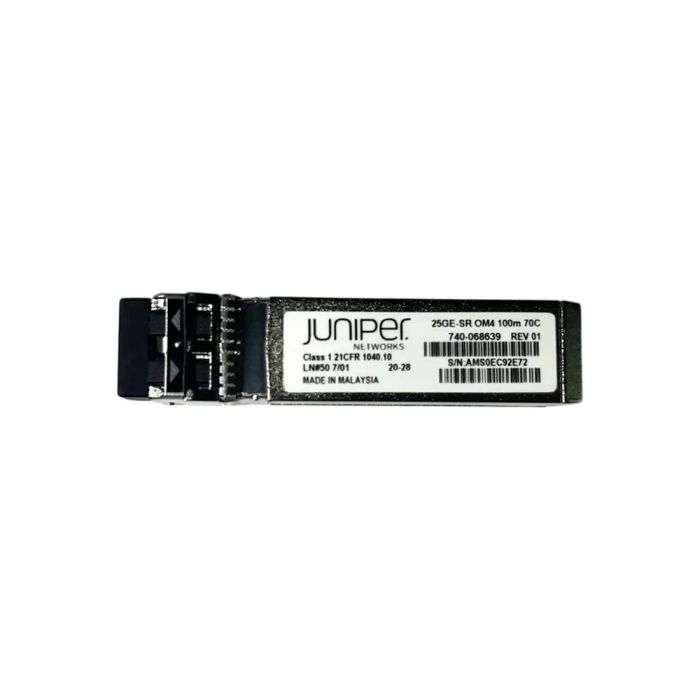

Juniper Networks 740-068639 SFP-28, 25G-SR Transceiver
Part Number:
740-068639
Need a bulk deal or have questions?
Our enterprise specialists reply within the hour.
Product Overview Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx Output Power
Rx Received Optical Power
Signaling Rate, Each Lane 25.78125 Gbd +/- 100 Ppm
Transmitter Fibers 1
Transmitter Wavelengths (range) 840 Nm To 860 Nm
Receive Lane Wavelengths (range) 840 To 860 Nm
Transmitter Rms Spectral Width (maximum) 0.6 Nm
Transmitter Output Power, Each Lane (minimum) -8.4 Dbm
Transmitter Output Power, Each Lane (maximum) 2.4 Dbm
Receiver Input Power, Each Lane (minimum) -10.3 Dbm
Receiver Input Power, Each Lane (maximum) 2.4 Dbm
Receiver Sensitivity (oma), Each Lane (maximum) N/a
Stressed Receiver Sensitivity (oma) Each Lane (maximum) -5.2 Dbm
Cable Type Smf
Core Size/cladding 50/125 Micrometre
Fiber Grade Om3/om4
Effective Modal Bandwidth 2000 Mhz X Km(om3), 4700 Mhz X Km(om4).
Distance 70m (om3), 100m(om4).
Maximum Power Consumption (w) 1.5 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature 40° C To 85° C
Typical Weight & Dimensions
Weight: 0.15 Kg
Height: 8.55 Mm
Width: 13.55 Mm
Depth: 57.5 Mm
Condition: New.
Availability: In Stock.
Our Warranty: 90 Days.
Juniper Networks 740-068639 25gbase-sr Sfp28 Module For Mmf
Specifications
Speed 25 Gigabit Ethernet
Breakout Capable No
Transceiver Type Sfp28
Product Type Optical Transceiver
Connector Duplex Lc
Monitoring Available Yes
Digital Optical Monitoring Yes
Msa Compliance (sff, For E.g. Sff-8665) Sff-8402
Optic Type (commercial Vs Service Provider Grade) Commercial
Digital Diagnostic Monitoring
Signaling Rate, Each Lane 25.78125 Gbd +/- 100 Ppm
Transmitter Fibers 1
Transmitter Wavelengths (range) 840 Nm To 860 Nm
Receive Lane Wavelengths (range) 840 To 860 Nm
Transmitter Rms Spectral Width (maximum) 0.6 Nm
Transmitter Output Power, Each Lane (minimum) -8.4 Dbm
Transmitter Output Power, Each Lane (maximum) 2.4 Dbm
Receiver Input Power, Each Lane (minimum) -10.3 Dbm
Receiver Input Power, Each Lane (maximum) 2.4 Dbm
Receiver Sensitivity (oma), Each Lane (maximum) N/a
Stressed Receiver Sensitivity (oma) Each Lane (maximum) -5.2 Dbm
Cable Type Smf
Core Size/cladding 50/125 Micrometre
Fiber Grade Om3/om4
Effective Modal Bandwidth 2000 Mhz X Km(om3), 4700 Mhz X Km(om4).
Distance 70m (om3), 100m(om4).
Maximum Power Consumption (w) 1.5 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature 40° C To 85° C
Typical Weight & Dimensions
Condition: New.
Availability: In Stock.
Our Warranty: 90 Days.
| Part Number: | 740-068639 |
|---|---|
| Capacity | 25 GIGABIT |
| Condition | New |
| Manufacturer | JUNIPER NETWORKS |
