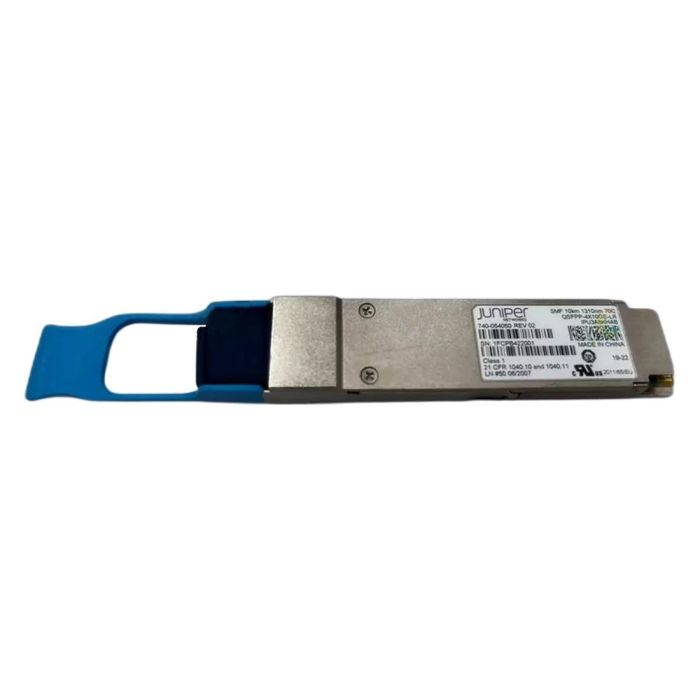

Juniper Networks 740-057315 QSFP+ 40G breakout into 4x10GBASE LR up to 10km SMF MPO-12 APC
Part Number:
740-057315
Need a bulk deal or have questions?
Our enterprise specialists reply within the hour.
Product Overview Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx Output Power
Rx Received Optical Power
Signaling Rate, Each Lane
Signaling Rate, Each Lane
10gbase-lr: 10.3125 Gbps
10gbase-lw: 9.95428 Gbps
Transmitter Wavelengths (range) 1260 Nm Through 1355 Nm
Transmitter Output Power, Each Lane (minimum) –6.5 Dbm
Transmitter Output Power, Each Lane (maximum) 0.5 Dbm
Receiver Input Power, Each Lane (minimum) –14.4 Dbm
Receiver Input Power, Each Lane (maximum) 1.5 Dbm
Cable Type Smf
Core Size/cladding 9/125 Micrometer
Distance 10 Km
Maximum Power Consumption (w) 3.5 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature –40° C To 85° C
Condition: Used Clean Tested.
Availability: In Stock.
Our Warranty: 90 Days.
Juniper Networks 740-057315 Qsfp+ 40g Breakout Into 4x10gbase Lr Up To 10km Smf Mpo-12 Apc Receptacle Transceiver
Specifications
Speed 4 X 10 Gigabit Ethernet
Breakout Capable Yes
Transceiver Type Qsfp+
Product Type Optical Transceiver
Connector Mpo-12 Apc
Monitoring Available Yes
Digital Optical Monitoring Yes
Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4) Ieee 802.3 Clause 52
Digital Diagnostic Monitoring
Signaling Rate, Each Lane
Transmitter Wavelengths (range) 1260 Nm Through 1355 Nm
Transmitter Output Power, Each Lane (minimum) –6.5 Dbm
Transmitter Output Power, Each Lane (maximum) 0.5 Dbm
Receiver Input Power, Each Lane (minimum) –14.4 Dbm
Receiver Input Power, Each Lane (maximum) 1.5 Dbm
Cable Type Smf
Core Size/cladding 9/125 Micrometer
Distance 10 Km
Maximum Power Consumption (w) 3.5 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature –40° C To 85° C
Condition: Used Clean Tested.
Availability: In Stock.
Our Warranty: 90 Days.
| Part Number: | 740-057315 |
|---|---|
| Capacity | 40 GIGABIT |
| Condition | Refurbished |
| Manufacturer | JUNIPER NETWORKS |
