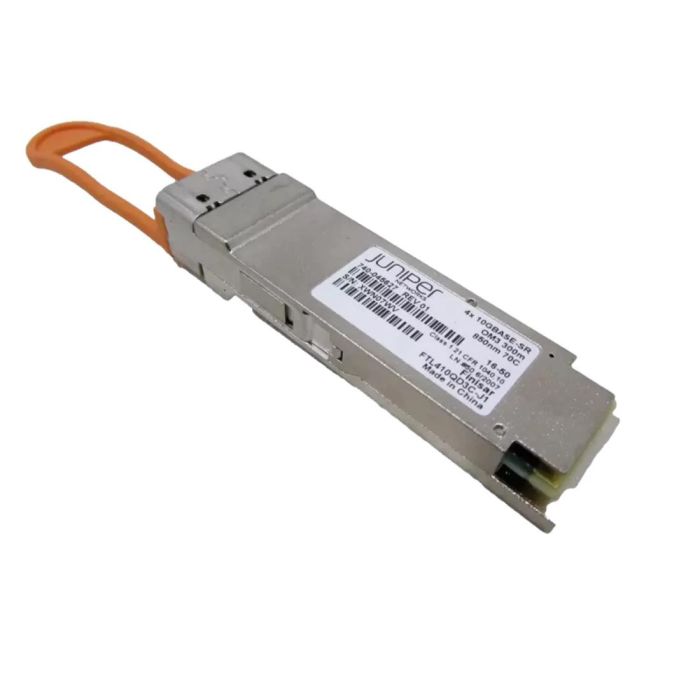

Juniper Networks 740-045627 QSFP+ 40GBase-eSR4 40 Gigabit Optics, 850nm for up to 300m Transmission on MMF

Specifications

Speed 4 X 10 Gigabit Ethernet, 40 Gigabit Ethernet

Breakout Capable Yes

Transceiver Type Qsfp+

Product Type Optical Transceiver

Connector Mpo-12

Monitoring Available Yes

Digital Optical Monitoring Yes

Signaling Rate, Each Lane 40 Gbps

Transmitter Fibers 12

Transmitter Wavelengths (range) 850 Nm

Transmitter Output Power, Each Lane (minimum) –4.3 Dbm (per Lane)

Transmitter Output Power, Each Lane (maximum) –1 Dbm (per Lane)

Receiver Input Power, Each Lane (minimum) –7.5 Dbm

Receiver Input Power, Each Lane (maximum) –1 Dbm

Cable Type Mmf

Core Size/cladding 50/125 Micrometer(om3), 50/125 Micrometer(om4).

Fiber Grade Om3, Om4

Effective Modal Bandwidth 2000 Mhz X Km(om3), 4700 Mhz X Km(om4)

Distance 300 M(om3), 400 M(om4)

Maximum Power Consumption (w) 3.5 W

Operating Temperature (range) 0° C To 70° C

Storage Temperature –40° C To 85° C

Condition: Used Clean Tested.
Availability: In Stock.
Our Warranty: 90 Days.
