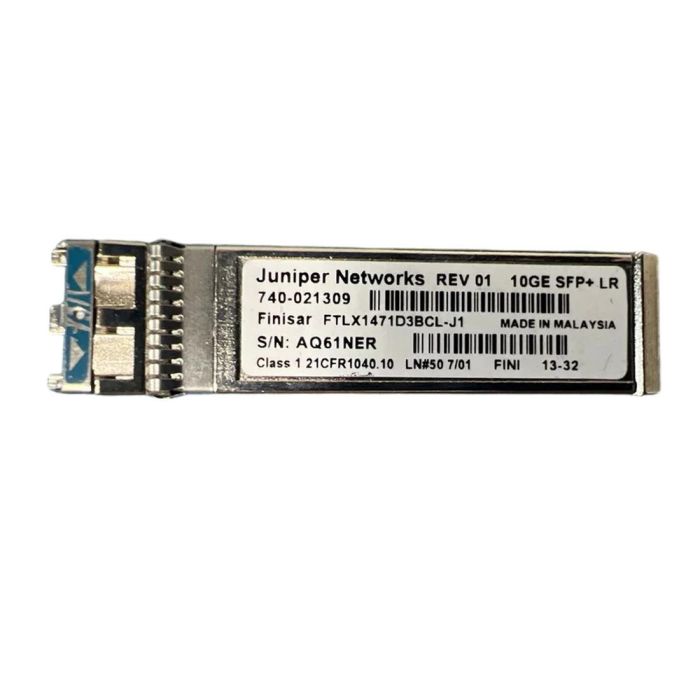

Juniper Networks 740-021309 10GBASE-LR Ethernet SFP+ LR 1310nm 10km SMF Transceiver Type 2
Part Number:
740-021309
Need a bulk deal or have questions?
Our enterprise specialists reply within the hour.
Product Overview Sff-8431
Sff-8472
Sff-8432
Digital Diagnostic Monitoring
Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx Output Power
Rx Received Optical Power
Signaling Rate, Each Lane 10 Gbps
Transmitter Fibers Smf
Transmitter Wavelengths (range) 1260 Nm To 1355 Nm
Receive Lane Wavelengths (range) 1260 Nm To 1355 Nm
Transmitter Output Power, Each Lane (minimum) –8.2 Dbm
Transmitter Output Power, Each Lane (maximum) 0.5 Dbm
Receiver Input Power, Each Lane (minimum) –14.4 Dbm
Receiver Input Power, Each Lane (maximum) 0.5 Dbm
Receiver Sensitivity (oma), Each Lane (maximum) -12.6 Dbm
Stressed Receiver Sensitivity (oma) Each Lane (maximum) -10.3 Dbm
Cable Type Smf
Core Size/cladding 9/125 Micrometer
Distance 10 Km
Maximum Power Consumption (w) 1.0 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature –40° C To 85° C
Typical Weight & Dimensions
Width: 14 Mm
Height: 12.05 Mm
Length: 57.5 Mm
Weight: 0.15 Lb
Condition: Used Clean Tested.
Availability: In Stock.
Our Warranty: 90 Days.
Juniper Networks 740-021309 10ge Sfp+ Lr 1310nm 10km Transceiver.
Specifications
Speed 10 Gigabit Ethernet
Breakout Capable No
Transceiver Type Sfp+
Product Type Optical Transceiver
Connector Duplex Lc
Monitoring Available Yes
Digital Optical Monitoring Yes
Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4) 10gbase-l
Msa Compliance (sff, For E.g. Sff-8665)
Digital Diagnostic Monitoring
Signaling Rate, Each Lane 10 Gbps
Transmitter Fibers Smf
Transmitter Wavelengths (range) 1260 Nm To 1355 Nm
Receive Lane Wavelengths (range) 1260 Nm To 1355 Nm
Transmitter Output Power, Each Lane (minimum) –8.2 Dbm
Transmitter Output Power, Each Lane (maximum) 0.5 Dbm
Receiver Input Power, Each Lane (minimum) –14.4 Dbm
Receiver Input Power, Each Lane (maximum) 0.5 Dbm
Receiver Sensitivity (oma), Each Lane (maximum) -12.6 Dbm
Stressed Receiver Sensitivity (oma) Each Lane (maximum) -10.3 Dbm
Cable Type Smf
Core Size/cladding 9/125 Micrometer
Distance 10 Km
Maximum Power Consumption (w) 1.0 W
Operating Temperature (range) 0° C To 70° C
Storage Temperature –40° C To 85° C
Typical Weight & Dimensions
Condition: Used Clean Tested.
Availability: In Stock.
Our Warranty: 90 Days.
| Part Number: | 740-021309 |
|---|---|
| Capacity | 10 GIGABIT |
| Condition | Refurbished |
| Manufacturer | JUNIPER NETWORKS |
